Pistons

Atrac Pistons

Guru Overseas Pistons are meticulously crafted using high-strength alloys and cutting-edge manufacturing techniques, resulting in exceptional quality that significantly enhances engine performance. These materials possess excellent conductivity, promoting efficient heat dissipation and optimal engine operation. The pistons' lightweight yet sturdy design ensures impeccable functionality over extended periods of use. Enhanced resistance to wear in ring grooves, skins, and gudgeon pin holes guarantees dimensional stability throughout service life. All alloy piston castings undergo precise heat treatment and aging processes to maximize strength and durability.

As a premier manufacturer and exporter of Pistons in India, we specialize in creating custom-designed pistons with various dimensions to meet the specific specifications and requirements of our customers worldwide. Each of our Pistons adheres rigorously to international standards, making them ideal OEM replacements across a diverse range of vehicles.

Our Product Varieties

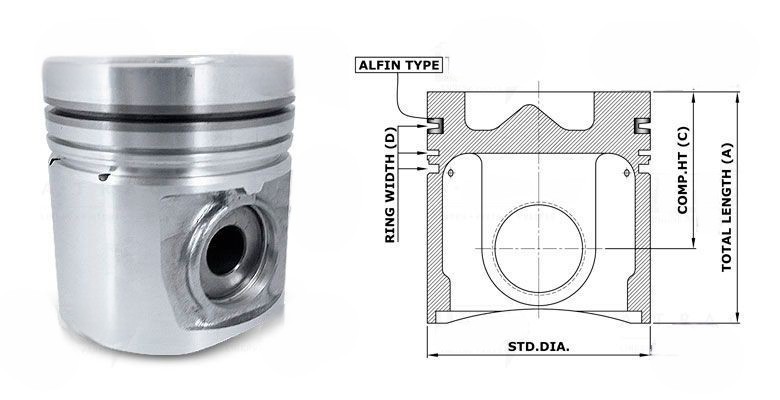

Alfin-Type Pistons

Alfin-Type Pistons

Steel Strip-Type Pistons

Steel Strip-Type Pistons

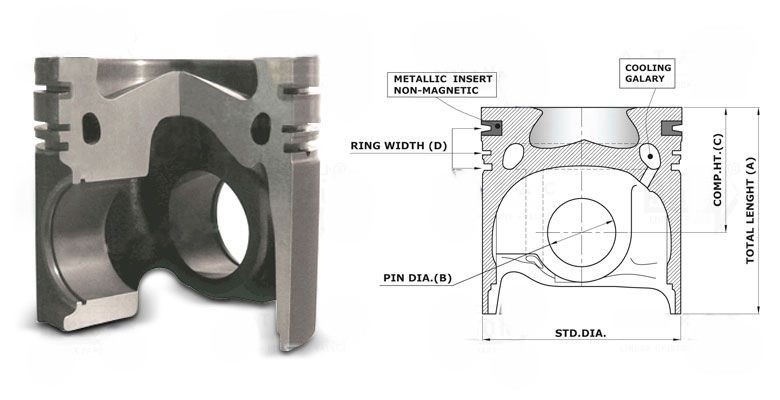

Cooling Gallery Pistons

Cooling Gallery Pistons

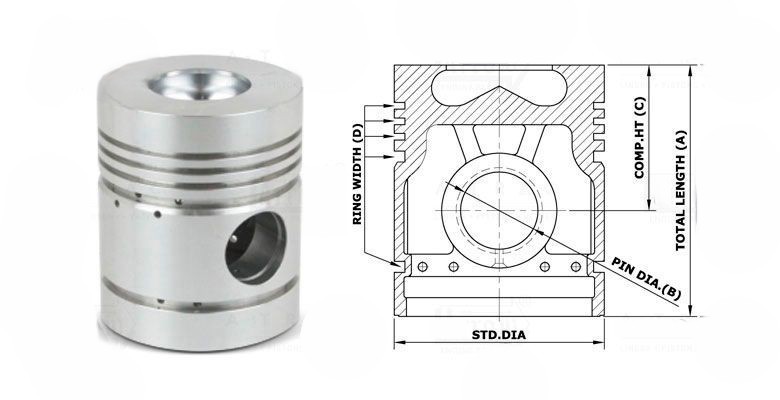

Standard Pistons

Standard Pistons

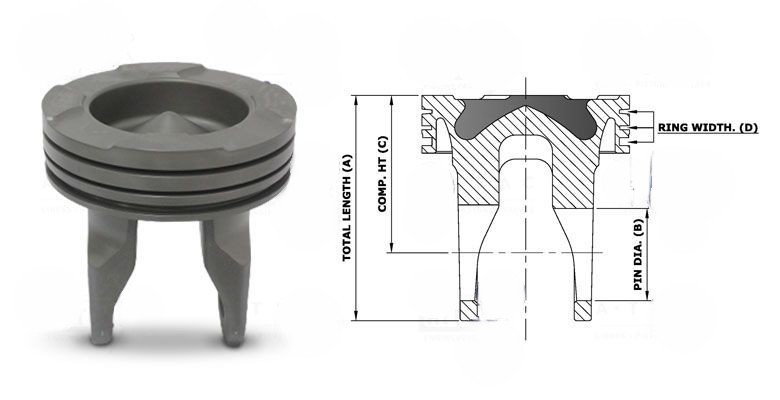

Articulated Pistons

Articulated Pistons

Our Manufacturing Capability

Producing 0.6 million units annually

Material Used

Aluminium

Hardness (HRB)

70

Chemical Composition

ElementMinimumMaximum
Copper (Cu)1.001.50
Magnesium (Mg)1.001.50
Silicon (Si)12.0014.00
Manganese (Mn)-Max. 0.20
Aluminium (Al)Rem.

Beyond the mentioned elements, we can also provide material compositions using Iron, Nickel, Zinc, Lead, Tin, Titanium, or as per customer specifications in line with international standards.

Available Size Range (In mm)

Standard Diameter

39.00 to 222.25
